Specification:
- External dimension: 13600mm * 2600mm * 2810mm
- Internal dimension: 13440mm * 2460mm * 2550mm
- External and internal panel covering: pre-painted flat steel sheets in white color RAL9016 (coated with thickness of 7micron primer and 25micron final epoxy coat)
- Panel insulation is polyurethane rigid foam (density 40Kg/M3)
- Thickness of insulation: side walls 60mm/roof and front 100mm/tail doors 80mm/floor 150mm.
- Floor panel made by “T” aluminum profile
- Inside and outside frame made by aluminum profiles
- Double wing door with stainless steel frame, each door equipped with 4 stainless steel hinges, stainless steel external locking bar and complete with sealing PVC profiles.
- Seal inside and outside of box by PU adhesives.
- Bumper / fender / tool box / 1 hatch on front + 1hatch on tail door / Internal light
- Chassis made by high tensile steel S500MC by welded by CO2 automated system, 3 axels with height controlling system for front axle, air suspension system, landing gear by JOST or SAF / braking system by KNORR or WABCO / ABS and EBS system / wiring by ASPOCK
Options:
- European made stainless steel lock and hinges
- Floor surface by checkered aluminum sheet
- Side door 900mm * 1600mm
- Steel or stainless steel railing set for meat
- Change color of outside aluminum frame
- Change color of external surface of panels
- Fix and portable insulated partition

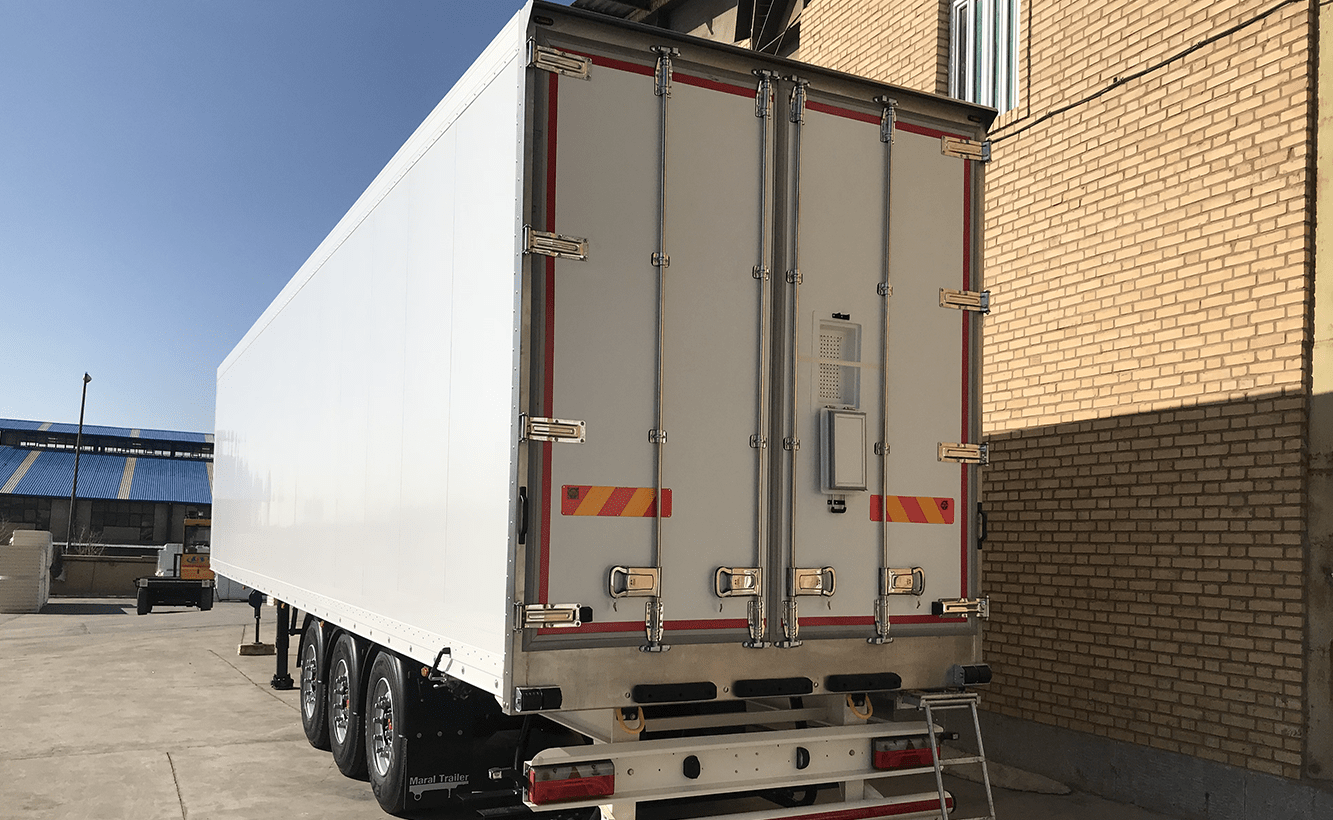

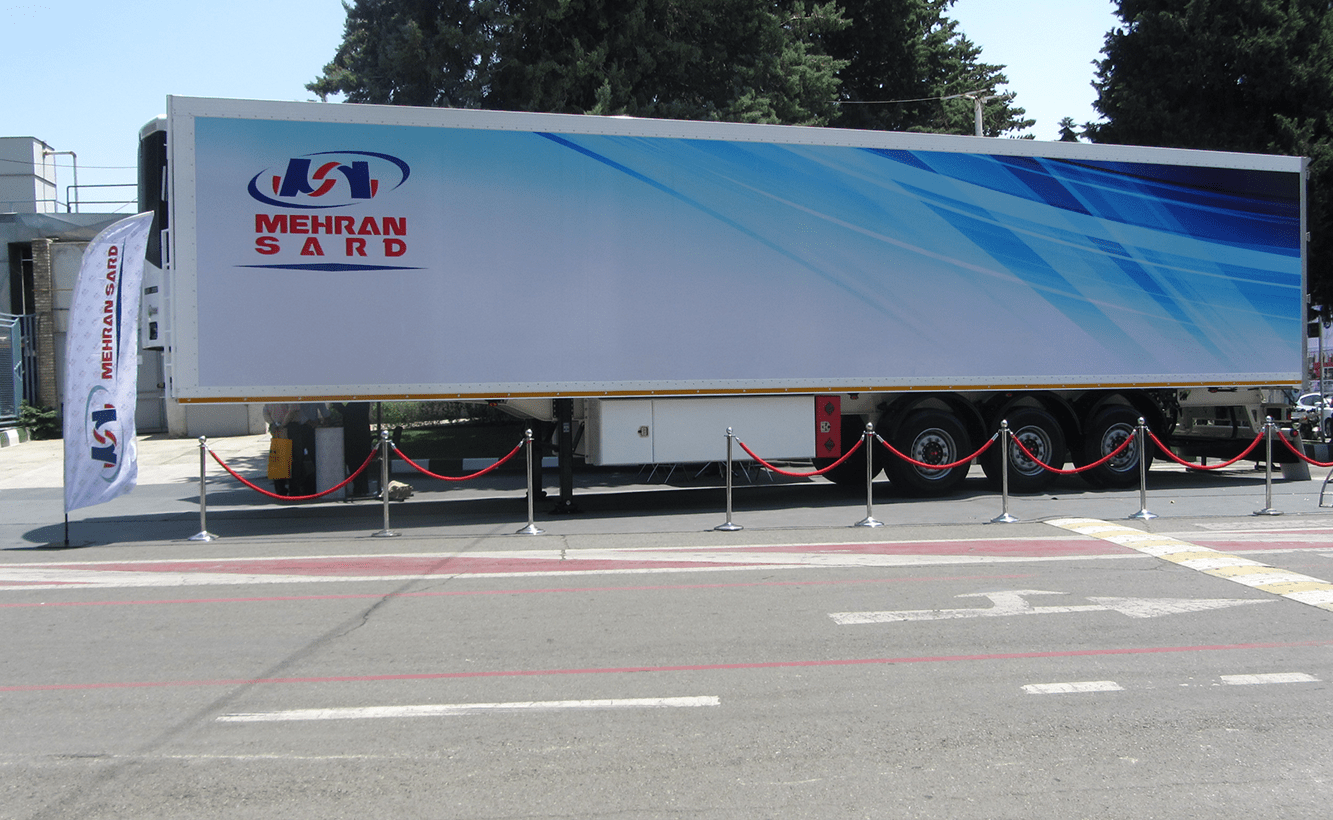

Refrigerated Semi-Trailer
Refrigerated Semi-Trailer
- External dimension: 13600mm * 2600mm * 2810mm
- Internal dimension: 13440mm * 2460mm * 2550mm
- External and internal panel covering: pre-painted flat steel sheets in white color RAL9016 (coated with thickness of 7micron primer and 25micron final epoxy coat)
- Panel insulation is polyurethane rigid foam (density 40Kg/M3)
- Thickness of insulation: side walls 60mm/roof and front 100mm/tail doors 80mm/floor 150mm.
- Floor panel made by “T” aluminum profile
- Inside and outside frame made by aluminum profiles
- Double wing door with stainless steel frame, each door equipped with 4 stainless steel hinges, stainless steel external locking bar and complete with sealing PVC profiles.
- Seal inside and outside of box by PU adhesives.
- Bumper / fender / tool box / 1 hatch on front + 1hatch on tail door / Internal light
- Chassis made by high tensile steel S500MC by welded by CO2 automated system, 3 axels with height controlling system for front axle, air suspension system, landing gear by JOST or SAF / braking system by KNORR or WABCO / ABS and EBS system / wiring by ASPOCK
Options
European made stainless steel lock and hinges
Floor surface by checkered aluminum sheet
Side door 900mm * 1600mm
Steel or stainless steel railing set for meat
Change color of outside aluminum frame
Change color of external surface of panels
Fix and portable insulated partition
