Specification
- 1- External dimension (without cooling unit): 12000mm * 2500mm * 2500mm
- External and internal panel covering: pre-painted flat steel sheets in white color RAL9016 (coated with thickness of 7micron primer and 25micron final epoxy coat)
- Panel insulation is polyurethane rigid foam (density 40Kg/M3)
- Thickness 100 mm for side walls and roof, 120mm for floor
- Floor panel made by checkered aluminum
- Inside and outside frame made by aluminum profiles
- Chassis made by
- Single cold storage door “MEHRAN DOOR” brand dimension 1900mm * 900mm
- Seal inside and outside of box by PU adhesives.
- 4 hook for moving container by crane
- Internal light
- Cooling system by German made compressor / all cooling sub parts made by Europe
Options
- Inside or outside surface of panels by stainless steel
- Floor surface by “T” aluminum profile
- External frame made by stainless steel
- Forklift jointing on chassis
- Install analog thermometer outside of container
- Full covering cooling unit by steel cage
- Insulated partition
- Inside shelfing

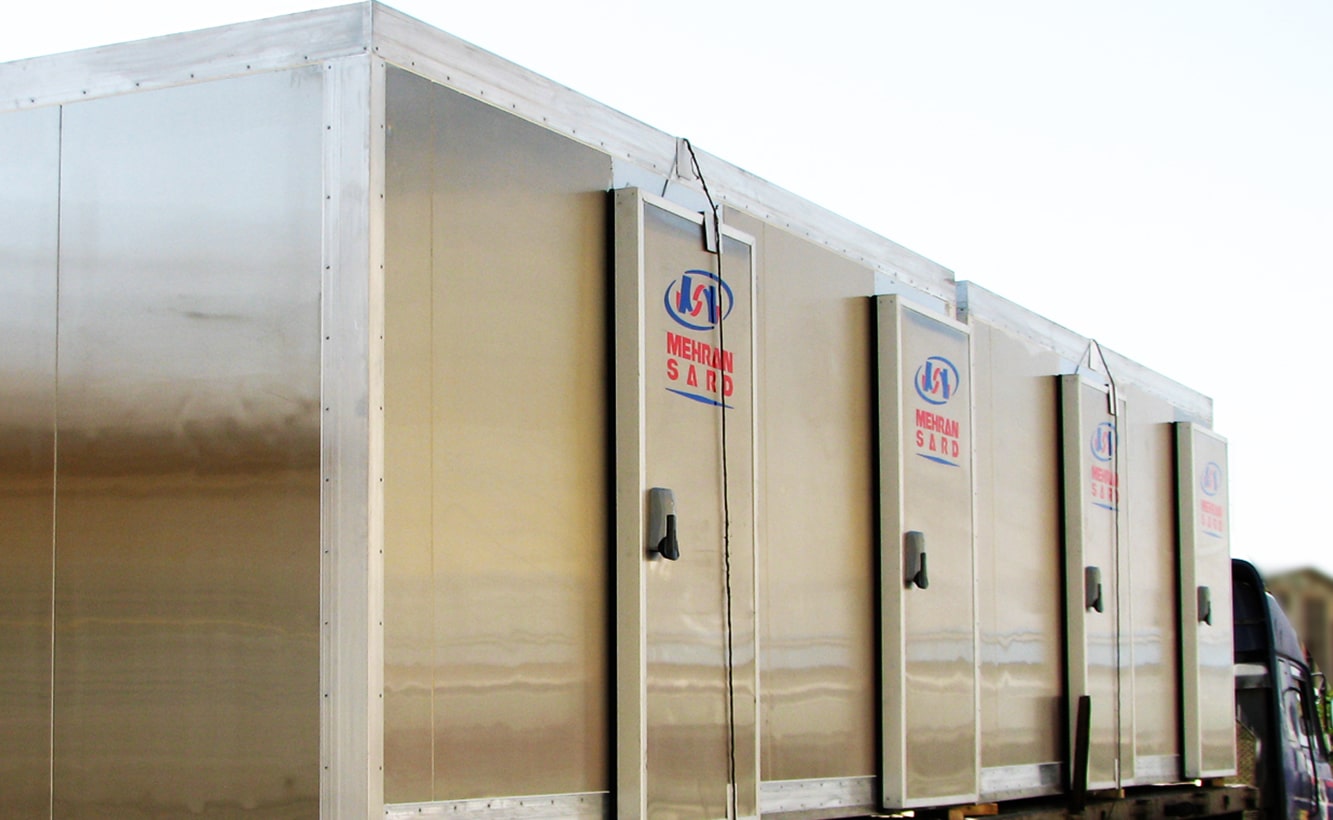

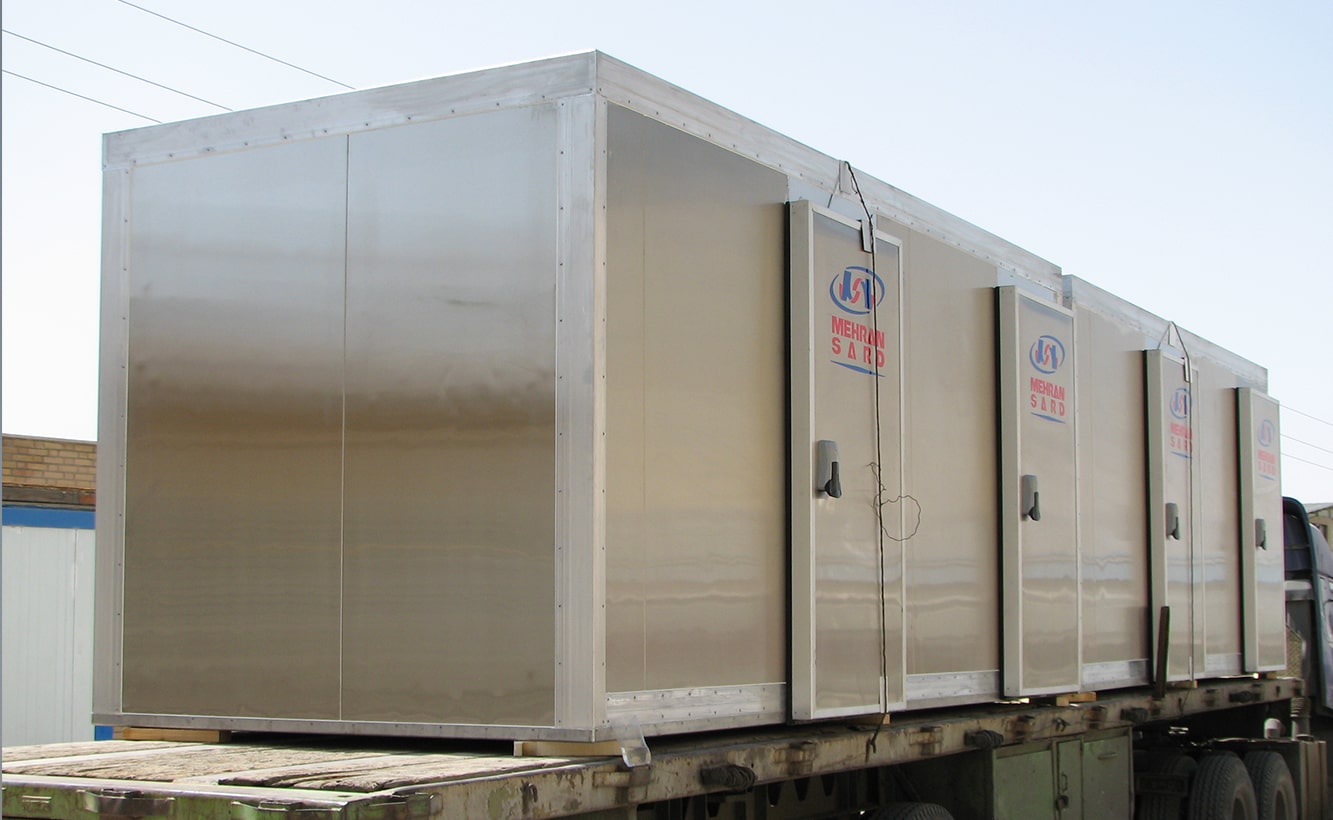

40ft portable cold storage
40ft portable cold storage
- 1- External dimension (without cooling unit): 12000mm * 2500mm * 2500mm
- External and internal panel covering: pre-painted flat steel sheets in white color RAL9016 (coated with thickness of 7micron primer and 25micron final epoxy coat)
- Panel insulation is polyurethane rigid foam (density 40Kg/M3)
- Thickness 100 mm for side walls and roof, 120mm for floor
- Floor panel made by checkered aluminum
- Inside and outside frame made by aluminum profiles
- Chassis made by
- Single cold storage door “MEHRAN DOOR” brand dimension 1900mm * 900mm
- Seal inside and outside of box by PU adhesives.
- 4 hook for moving container by crane
- Internal light
- Cooling system by German made compressor / all cooling sub parts made by Europe
40ft portable cold storage
Inside or outside surface of panels by stainless steel
Floor surface by “T” aluminum profile
External frame made by stainless steel
Forklift jointing on chassis
Install analog thermometer outside of container
Full covering cooling unit by steel cage
Insulated partition
Inside shelfing
